VFD Control Panel Solutions for UAE & GCC Industrial Facilities
C3 Automation designs, builds, and integrates VFD control panels for industrial facilities across the UAE and GCC — engineered with PLC and SCADA integration, IEC 62443-aligned OT cybersecurity, and panel specifications built for regional heat, dust, and grid conditions from day one, not retrofitted as an afterthought.
REQUEST A QUOTE →What Is a VFD Control Panel?
A rel="noopener" style="text-decoration: underline;"> VFD control panel houses one or more variable frequency drives, along with the protection, control logic, and interface components needed to run a real industrial load safely. Instead of switching a motor directly across the incoming power supply, which forces it to start at full speed and full current, a variable frequency drive ramps the motor up and down by adjusting the frequency and voltage of the power feeding it.
This is the core difference between a VFD panel and a conventional Direct-On-Line or star-delta starter panel. A VFD panel gives you continuous, adjustable control instead of a single fixed speed, which is why a VFD panel is now the default choice for most variable-load industrial motors.

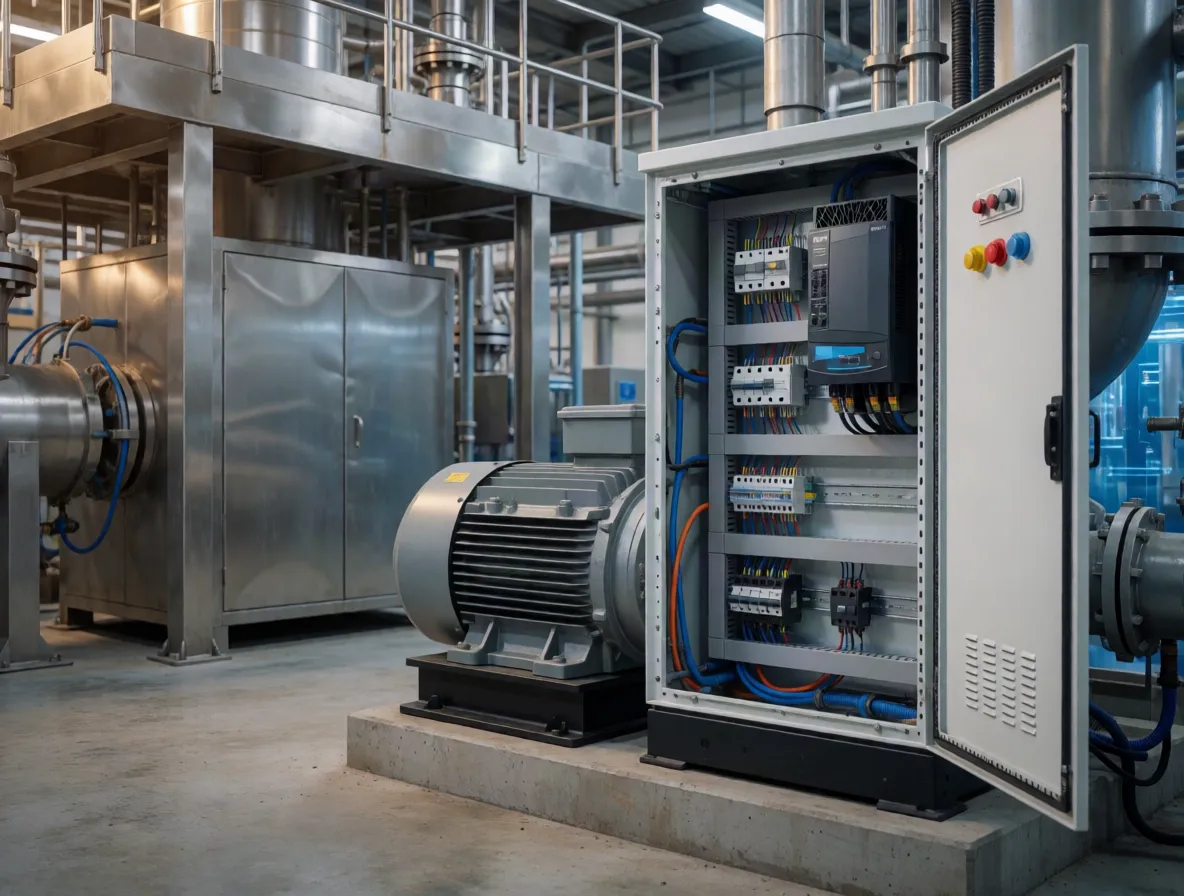

alt="vfd control panel"
>
How Does a VFD Panel Work?
Inside a VFD panel, the incoming AC supply is first rectified to DC, then converted back to AC at a variable frequency and voltage through an inverter stage. This frequency conversion is what allows a VFD control panel to slow a motor down under light-load conditions and speed it back up as demand increases, instead of running the motor at full speed continuously.
AC Supply
to DC
stabilization
and voltage
AC output
operation
Most modern VFD panels also support more than one control mode, from simple V/Hz control for fans and pumps to full vector control for applications that need precise torque management, such as conveyors, mixers, and extruders. Choosing the right control mode is one of the first decisions in any VFD control panel design.
V/Hz Control
Fans & Pumps
Vector Control
Conveyors, Mixers & Extruders
Core Components of an Electrical Control Panel Built Around a VFD
A well-designed electrical control panel built around a variable frequency drive is more than the drive module alone. The components inside determine whether the panel runs reliably for years or becomes a recurring maintenance issue:
Incoming Isolator and Protection Devices
MCCBs, fuses, and surge protection sized to the drive and motor
The VFD or Drive Module
The core of any VFD control panel, selected by kW rating, voltage, and control mode
Bypass Contactors
Allow the motor to run direct-on-line if the drive needs servicing
PLC and HMI Interface
For local control, monitoring, and fault diagnostics
Cooling and Ventilation
Critical in UAE ambient temperatures, where thermal design directly affects drive lifespan
Harmonic Filters
To manage power quality and support grid compliance
IP-Rated Enclosure
IP54 for indoor panels, higher ratings or GRP enclosures for panels exposed to outdoor GCC conditions
Every electrical control panel we design accounts for these UAE-specific environmental factors from the first drawing, not as an afterthought, because an electrical control panel that isn't engineered for local heat and dust is a maintenance liability from day one.
7 Powerful Benefits of a VFD Control Panel
Lower Energy Consumption
A VFD control panel lets motors run only as fast as the process requires — under the pump and fan affinity laws, even modest speed reductions on variable-torque loads can meaningfully cut energy use.
Extended Motor and Mechanical Lifespan
The soft acceleration built into a VFD panel reduces mechanical shock on shafts, bearings, couplings, and belts compared with a direct-on-line start.
Precise Process Control
A variable frequency drive panel lets you match motor speed to real-time process demand instead of running at one fixed speed and throttling output mechanically.
Reduced Maintenance Costs
Less mechanical stress on the motor and connected equipment means fewer unplanned breakdowns and shorter downtime windows across the life of the VFD control panel.
Lower Starting Current
A VFD panel eliminates the inrush current spikes typical of DOL starters, protecting upstream cabling, transformers, and switchgear from repeated stress.
Improved Power Quality
With correctly specified harmonic filtering, a VFD control panel can improve rather than degrade power factor and supply quality on site.
Remote Monitoring and Integration Readiness
A properly specified VFD control panel is built from day one to connect into a PLC or SCADA system, not retrofitted for it later.
Industries That Rely on a VFD Control Panel Across the UAE and GCC
C3 Automation designs and builds VFD control panels for facilities across the sectors we know best:
Oil and Gas
Compressor, pump, and blower motor control on process and offshore facilities
Water and Wastewater
Duty/standby pump control panels for treatment plants, lift stations, and desalination sites
Manufacturing
Conveyor, mixer, and extrusion motor control across production lines
Utilities and Power/Energy
Auxiliary motor control supporting generation and distribution infrastructure
Renewable Energy
Motor control integrated into solar and wind balance-of-plant systems
Because these are the sectors our Projects and Sales divisions already serve daily across the UAE and Dammam, a VFD control panel from C3 Automation is specified by engineers who understand the process it's controlling, not just the drive inside the box.
